APE Manual Cam Chain Tensioner Application Chart
APE manual cam chain tensioners are designed to replace the automatic and hydraulic tensioners on high performance engines. The automatic adjusters can back out when the throttle is closed suddenly at high rpm. This allows the cams to go momentarely out of time, and can result in bent valves and/or serious engine damage. Hydraulic tensioners have a tendency to put too much tension on the chain guide under high rpm/high oil pressure conditions, resulting in premature wear.
Both problems can be eliminated with the installation of the APE manual tensioner. No mater what the engine does, the cam chain tension will remain constant. An APE manual cam chain tensioner is a must for any kind of performance riding.

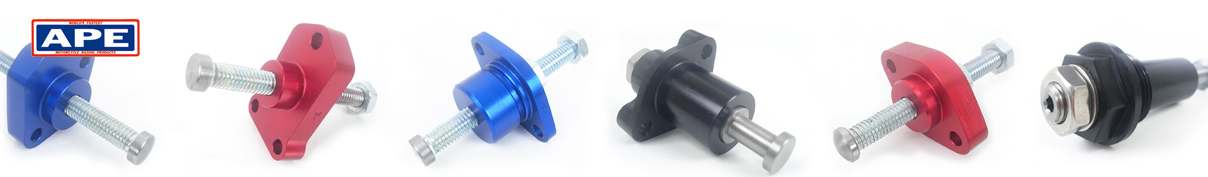

APE manual tensioners are CNC machined from billet alloy to exact tolerances for perfect fit. Colors will vary depending on Make/Model/Year.
Also available in a Pro Series Version
| Honda | |
| CBR600RR (2003-2011) | HT600RR |
| CBR1000RR (2004-2007) | |
| CBR600 Hurricane/F2 | HT600 |
| CBR600 F3/F4/F4i | HT900 |
| CBR900RR | |
| CBR1100XX | |
| CBR929/954 | HT929 |
| CBR1000RR (2008-2015) | HT1000 |
| Kawasaki | |
| Ninja 250 (2008-2013) | KT250 |
| ZX-12 (2000-2005) | KT750 |
| ZX-9 (1994-1997) | |
| ZX-6R (1996-2008) | |
| ZX-6RR 636 (2002-2006) | |
| KZ1000 J Model | KT1100 |
| GPz1100 | |
| 600RR Ninja | |
| ZX-7 (thru 1990) (center cam chain) | |
| KZ900/KZ1000 (thru 1980) | KT1000 |
| ZX-9R (1998-2003) | KT900 |
| EX500 (all years) | KT1050 |
| KLR650 (1996-2013) | |
| 900 Ninja | |
| ZX10 (old style) | |
| ZX-11 | |
| ZRX1100 | |
| ZRX1200 | |
| ZX-10R (2004-2005) | KTZX10 |
| ZX-14 (2006-2011) | KTZX14 |
| Suzuki | |
| GS1000 (2 valve) | ST1100 |
| GS1100 | |
| GS1150 | |
| GSXR600 (1993-1996) | ST1100GX |
| GSXR750 (1993-1995) | |
| GSXR1100 (1993-1998) | |
| GSXR750 (1986-1992) | ST750 |
| GSXR1100 (1987-1992) | |
| Bandit 1200 (all years) | |
| GSXR600 (1997-2000) | ST750GX |
| GSXR750 (1996-1999) | |
| GSXR600 (2001-2003) | ST750Y2K |
| GSXR750 (2000-2003) | |
| GSXR1000 (2001-2002) | |
| GSXR600 (2004-2007) | ST1000-3 |
| GSXR750 (2004-2007) | |
| GSXR1000 (2003-2008) | |
| GSXR1300 (1999-2007) | ST1300SX |
| GSXR600 (2008-2014) | ST1300-08 |
| GSXR750 (2008-2014) | |
| GSXR1000 (2009-2014) | |
| GSXR1300 (2008-2015) | |
| Yamaha | |
| R6 (1999-2005) | YT1000 |
| FZR600 | |
| FZR750 | |
| YZF750 | |
| YZR/YZF1000 | |
| R1 (thru 2003) | |
| FJ1100 | |
| FJ1200 | |
| YZ250F (2001-2005) | |
| WR250F (2001-2005) | |
| YZ400F (1998-1999) | |
| WR400F (1998-2000) | |
| YZ426F (2000-2002) | |
| WR426 (2001-2002) | |
| YZ450F (2003-2005) | |
| YZF-R1 (2004-2006) | YTR1 |
| YZF-R1 (2009-2014) | YTR1-09 |
| YZF-R6 (2006-2014) | YTR6 |
