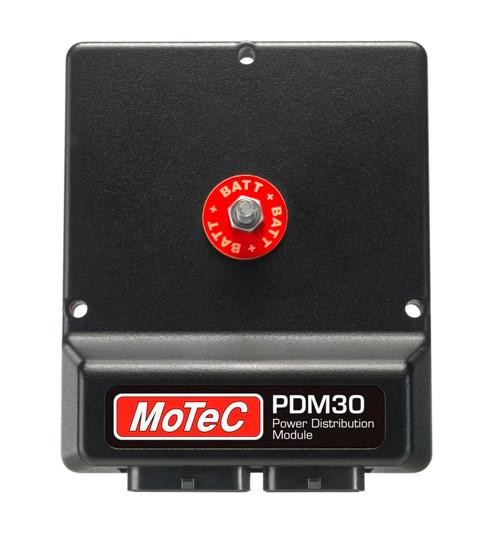

Motec PDM30 Power Distribution Module

Product Description

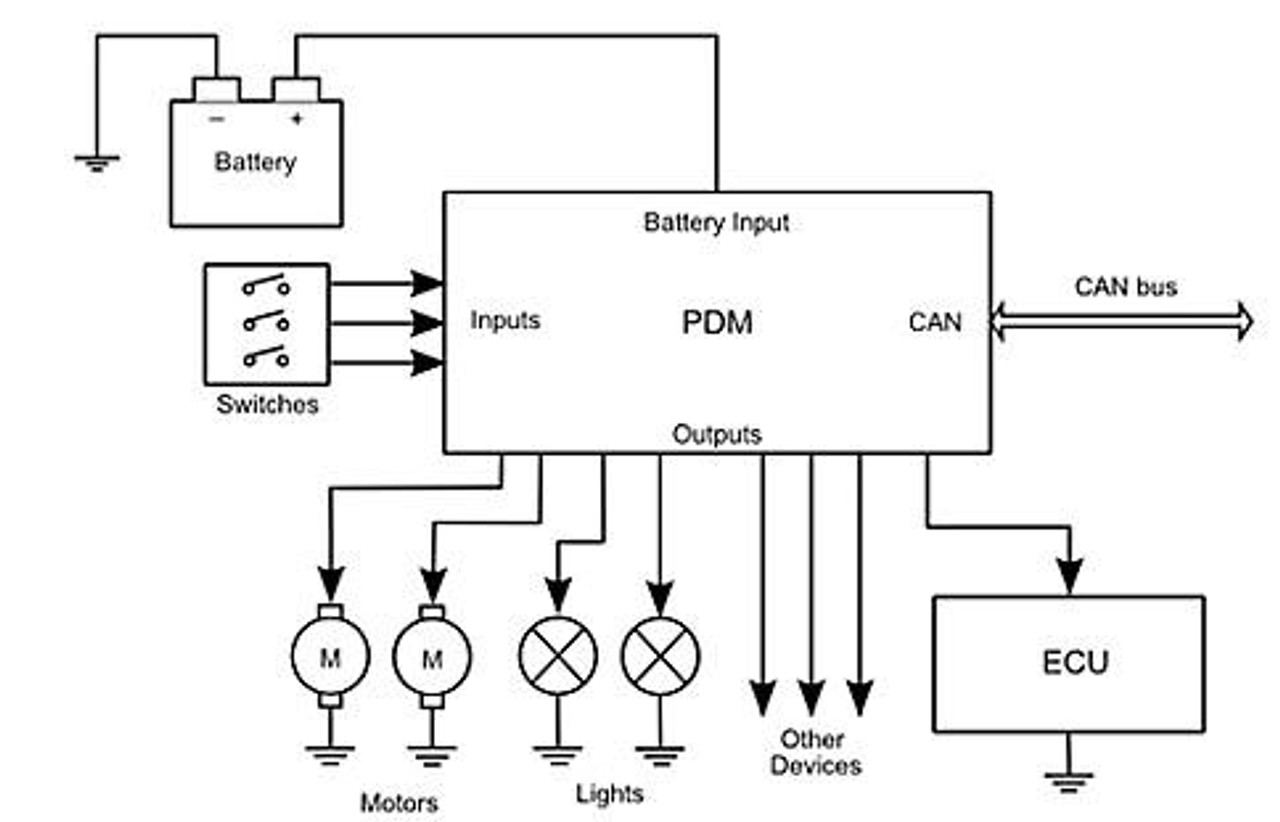

MoTeC Power Distribution Modules (PDM) are designed to replace conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

They not only provide electronically switched power to various systems in the vehicle, but can also be programmed to make smart decisions while the vehicle is out on track. For example, they can restart devices automatically after a short, switch to a reserve pump if a main pump fails, systematically shut down devices if battery voltage drops, even regulate the water in a driver’s cool suit.

In addition to that the PDMs provide full diagnostic information, including output currents and error status, enabling teams to monitor the entire vehicle via telemetry.

OUTPUTS

• 8 x 20 A outputs—20 A continuous, 115 A transient (typical)
• 22 x 8 A outputs—8 A continuous, 60 A transient (typical)

INPUTS

• 16 x Switch inputs

COMMUNICATIONS

• 1 x CAN

DIAGNOSTIC INFORMATION

• Output current and voltages
• Input voltages
• Error status

PHYSICAL

• Connectors
  • 1 x 34 pin waterproof connector
  • 1 x 26 pin waterproof connector
  • 1 x M6 stud
• Case size 108 x 128 x 39 mm
• Weight 260 gram
