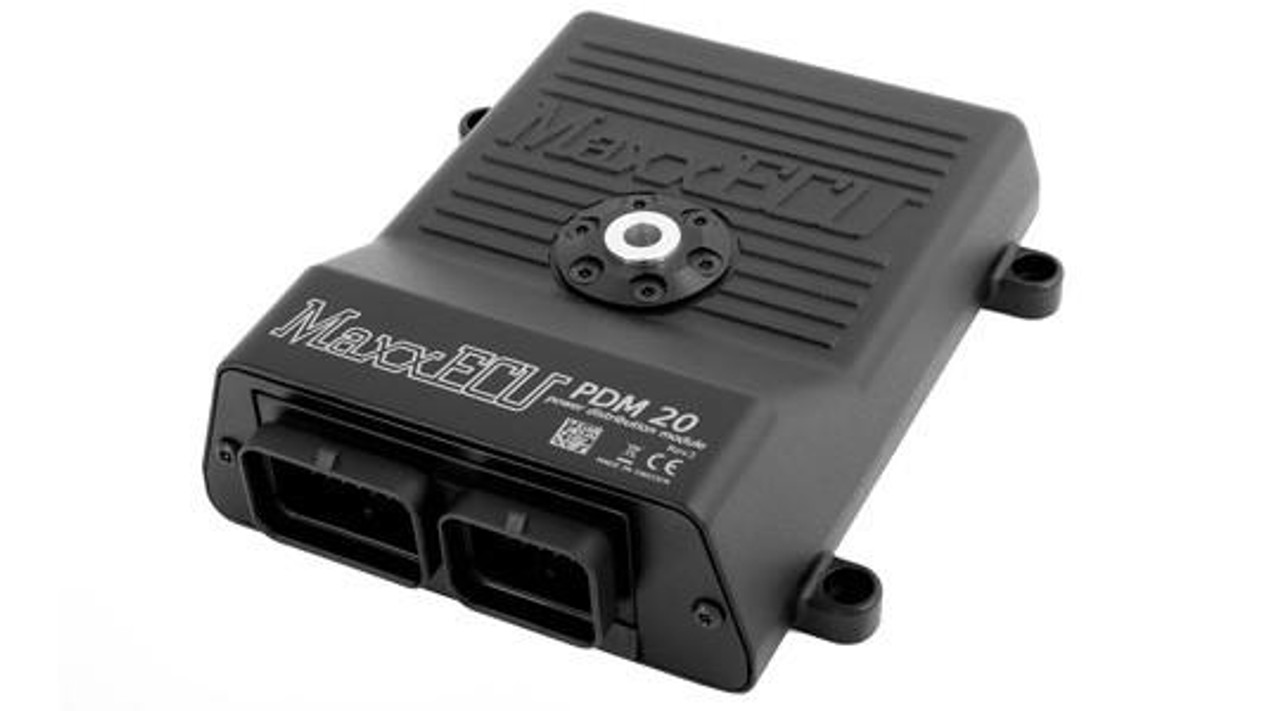

MaxxECU PDM20: Power Distribution Mastery
Unleash the full potential of your vehicle's power distribution with the MaxxECU PDM20. Engineered for precision performance, this Power Distribution Module takes command with cutting-edge features and robust capabilities.
Key Specifications:
- Temperature Range: Operating seamlessly from -40 to +125 degrees Celsius.
- Versatile Voltage Range: Designed for adaptability with a 6-22V operating voltage.
- Advanced Processing Power: Empowered by a 32-bit ARM Cortex-M3 CPU, ensuring swift and efficient operations.
- Compact Dimensions: Compact and sleek at 132x140x42mm (excluding protruding connectors), fitting seamlessly into your vehicle's setup.
- Secure Connections: Equipped with 1x 34-pin and 1x26-pin Superseal connectors for secure and reliable connections.
- Battery Connection: Simplified with an M6 screw for easy battery connection.
MaxxECU PDM20 Inputs:
- Digital/Analog Inputs: 7 versatile inputs supporting a range of 0-24V, providing flexibility for your specific needs.
- Software Selectable Pullup: Tailor the module to your requirements with software-selectable 12V pullup functionality.
- CAN Keypad Compatibility: Seamlessly integrate with a CAN keypad featuring options for 4, 6, 8, or 12 keys.
MaxxECU PDM20 Outputs:
- High Current Throughput: Boasting a maximum current throughput of 230A for robust power distribution.
- PWM Capable Outputs: All outputs are PWM capable, allowing for precise control and modulation.
- Smart Monitoring: Integrated current and voltage measuring for comprehensive performance monitoring.
- H-Bridge Drivers: 6 outputs with H-bridge drivers for enhanced functionality.
- Protection Features: Overtemperature protection and output overcurrent protection with emulated fuse characteristics and hardware backup for added security.
- Sensor Supply Output: Monitored +5V sensor supply output for seamless sensor integration.
- Expandable Capacity: Outputs can be paired to increase current capacity, providing scalability for evolving needs.
Reliable and Intelligent Communication:
- CAN-bus Connectivity: Facilitates PC communication over CAN-bus via any MaxxECU to MTune, ensuring seamless tuning and control.
Elevate your power distribution setup with the MaxxECU PDM20 — where precision meets performance. Unleash the potential of your vehicle's electrical system with cutting-edge technology and robust features.
