Product Description

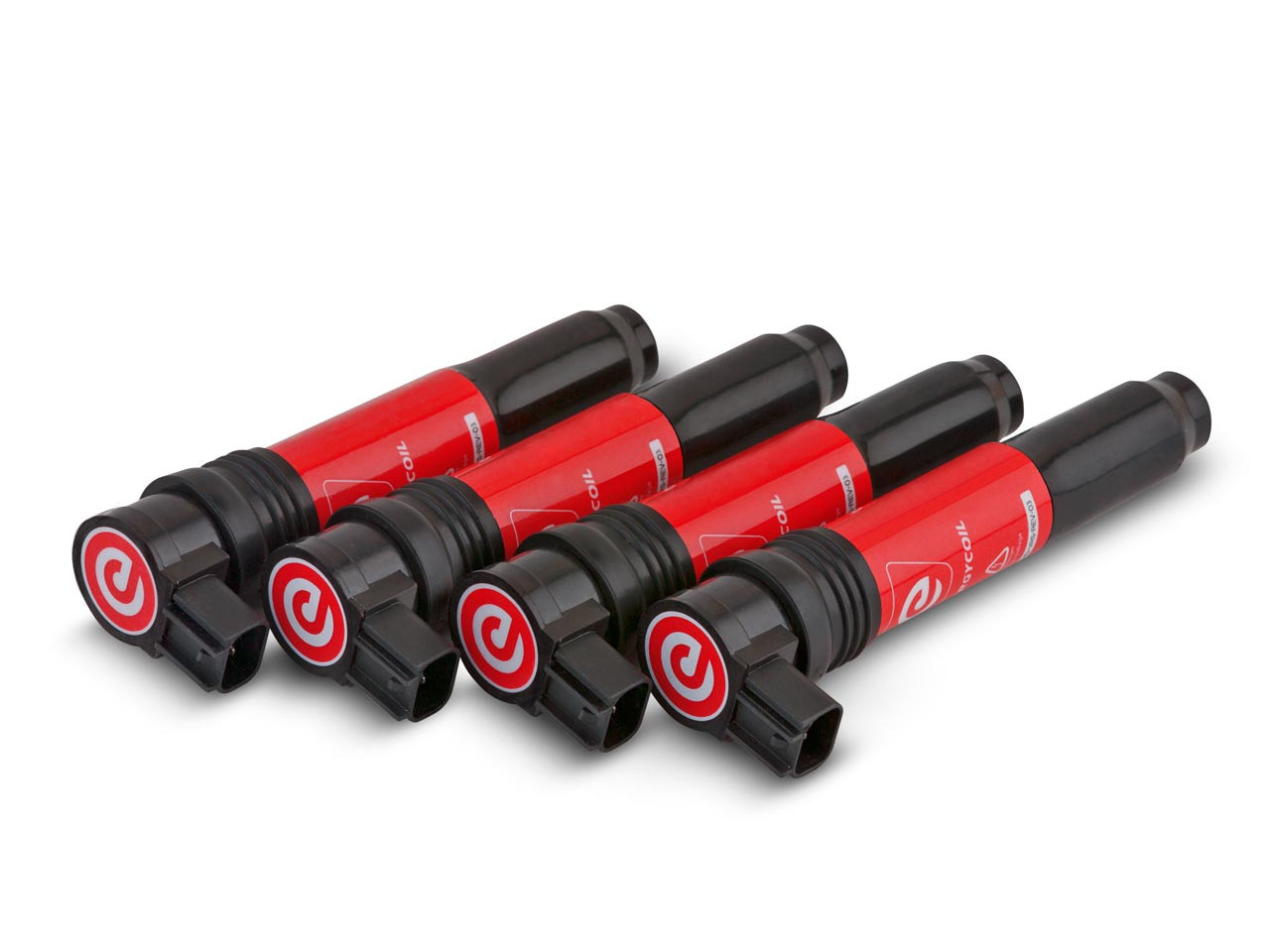

Packed with plenty of brawn and beauty there is no question the Yamaha V-Max is an ultimate power cruiser. If you want to make big power for your V-max you need plenty of air, a good supply of fuel and a strong spark to set off a rich and powerful combustion. So we developed the Energycoil to deliver a hotter stronger and longer spark event from down low on the rpms all the way up to red line. When you upgrade your stock coils to Hi-Performance Energycoil you not only get more power but you also get a crisper throttle response with a smoother idle and improved fuel efficiency. Let your V-Max come alive and feel the difference the Energycoil advantage can make for you.
Features:
- Increased horsepower
- Increased torque
- Improved throttle response
- Improved fuel efficiency
- Direct OEM replacement
- Made in USA
Higher Engine Performance - Get the best performance out of your engine with a hotter, longer and more powerful spark. By releasing up to 40% more voltage than conventional coils Energycoil helps to ignite fuel with increased intensity to deliver impressive performance gains and increased engine response.
Improved Energy Transfer - Transfer more energy effectively with beefy connectors that match the profile of a spark-plug terminal for greater surface contact and extremely efficient energy transfers that help improve overall engine efficiency by up to 45%.
Better Protection - Keep more energy on tap with protection against energy leakage and spark flash-over. Using the newest advancements in technology, we created a shield around the Power Core that can focus more energy down to the spark-plug while also acting as a shield against electrical interference.
Easy Installation - Energycoil is designed to directly replace your original stick coils without any modifications. Adding Energycoil to your engine is one of the easiest ways to increase performance, improve engine response and lower fuel consumption.
Specifications
- Primary resistance: 1.2 ohms
- Primary inductance: 2.4 mH
- Secondary resistance: 12.5K ohms
- Secondary inductance: 12.9 H
- Test voltage: 13.5V
- Dwell time to achieve test current: 1.3ms=5.2A, 2.1ms=7.6A
- Secondary available voltage: 25.2Kv @ 5.2A, 42.8Kv @ 7.6A
- Secondary peak gap current: 72.4mA @ 5.2A, 105.8mA @ 7.6A
- Spark duration: 0.910@ 5.2A, 1.435ms @ 7.6A
Learn More about the Energycoil advantage on our Tech Information Page
