Product Description

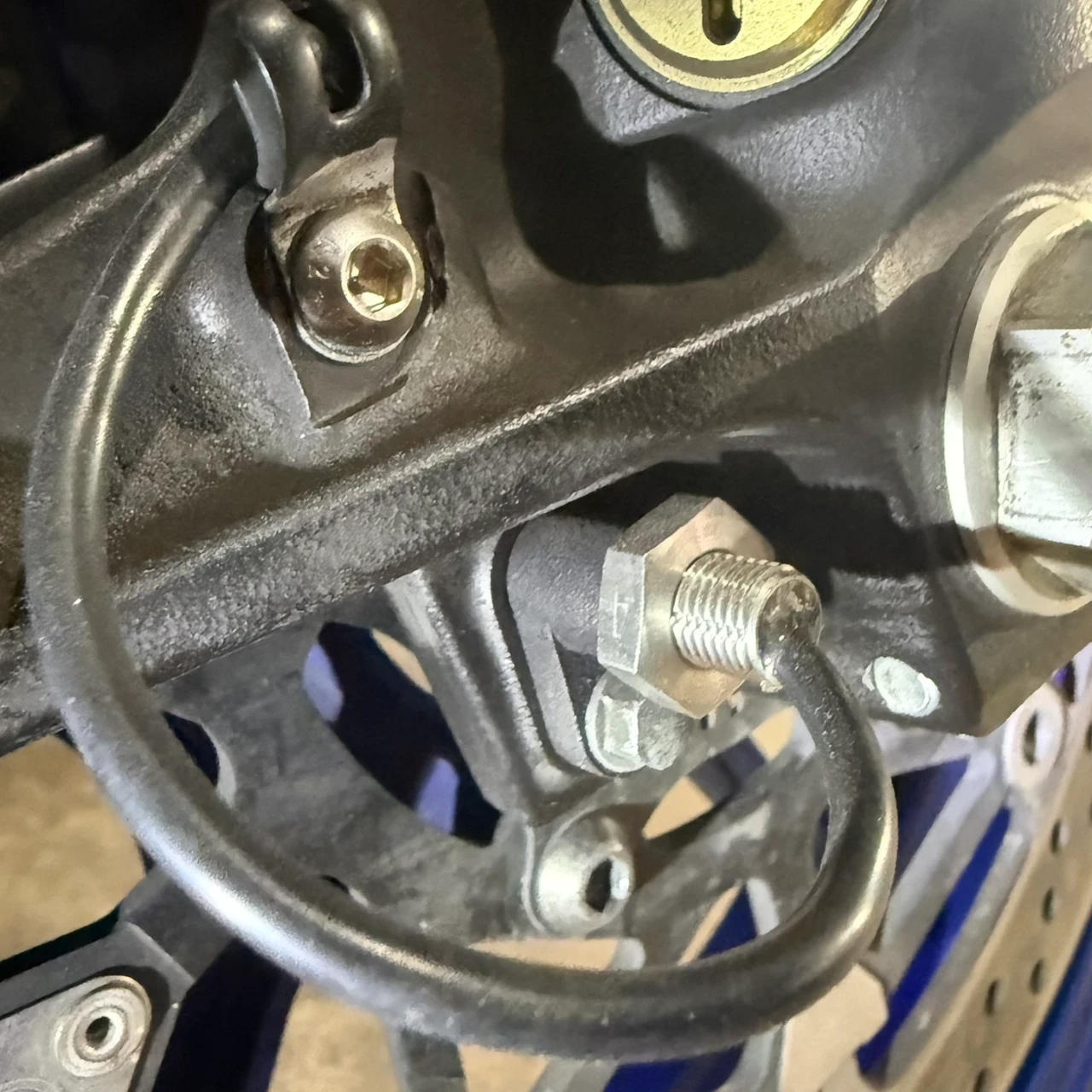

The RSR Hall Effect Speed Sensor reads a rotating steel target to provide a speed signal to your data logger. It detects ferrous metal, so no magnets are needed.
Key Features:
- 5/16"-24 threaded stainless steel body
- Flush-mount design
- Detection range: 0.1–1 mm (0.004"–0.040")
- 10–30V DC supply voltage
- Normally open signal
- Built-in short-circuit and reverse-polarity protection
- IP67 rated
- Operating temperature: -13°F to 176°F
- Maximum switching frequency: 8,000 Hz

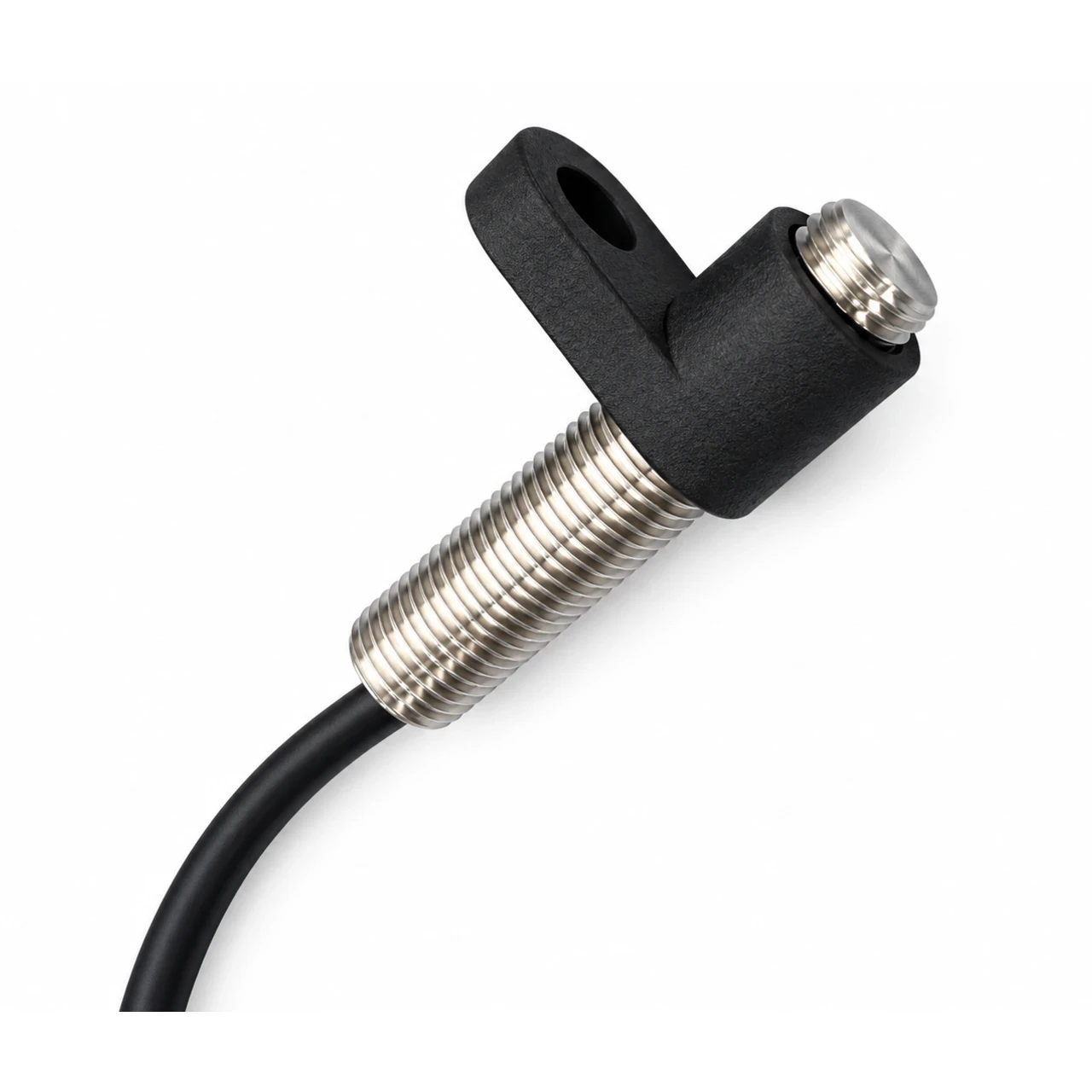

- Includes a mounting bracket made from glass bead-reinforced Nylon 12.

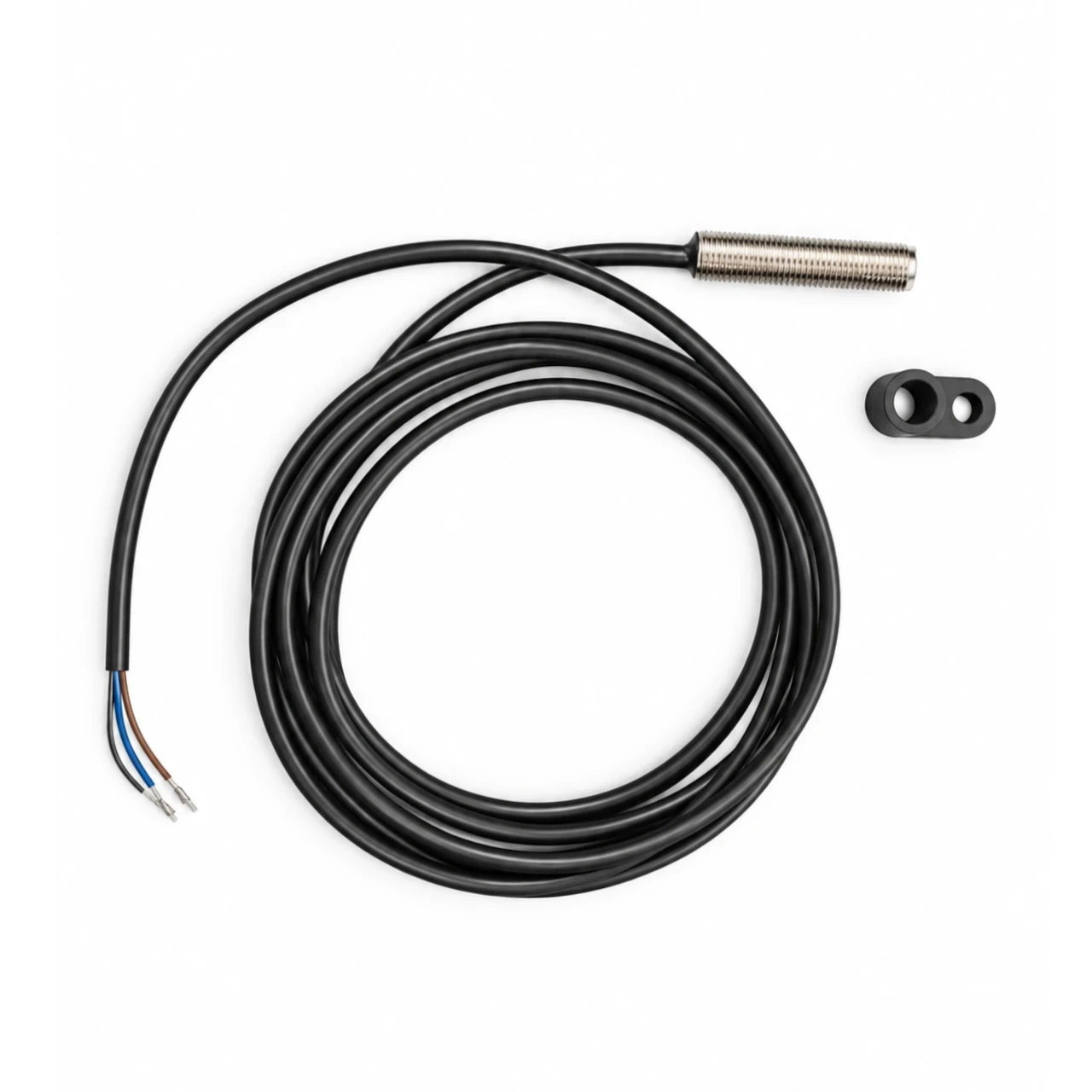

Wiring:
- Brown: 10–30V DC power
- Blue: Clean ground
- Black: Signal to data logger (0V output)
