Product Description
CP Standard Features:
Anti Detonation Grooves - Anti Detonation Grooves (Contact Reduction Grooves) are grooves that protect the top ring by disrupting detonation waves. Also known as contact reduction grooves, these grooves limit the piston/cylinder contact during high temperature and RPM.
Accumulator Groove - Accumulator Groove is a V-shaped groove machined in the 2nd ring land to collect excess blowby between the top and second ring. This groove collects residual gasses during combustion and alleviates top ring flutter while increasing ring seal.
Double Pin Oilers - Double Pin Oilers in conjunction with our dual fed reservoir add twice the amount of oil from the cylinder wall to the wrist pin.
X-Forgings - X-Forgings are designed to minimize friction and reduce weight without compromising strength. With the useof bracing and ribs, the forging is configured by adjusting the weightbalance between high and low stress areas. This design enables the use of a shorter pin for added strength and weight savings.
Radiused Domes - Radiused Domes are used to maximize quench while eliminating possible hot spots that promote detonation.

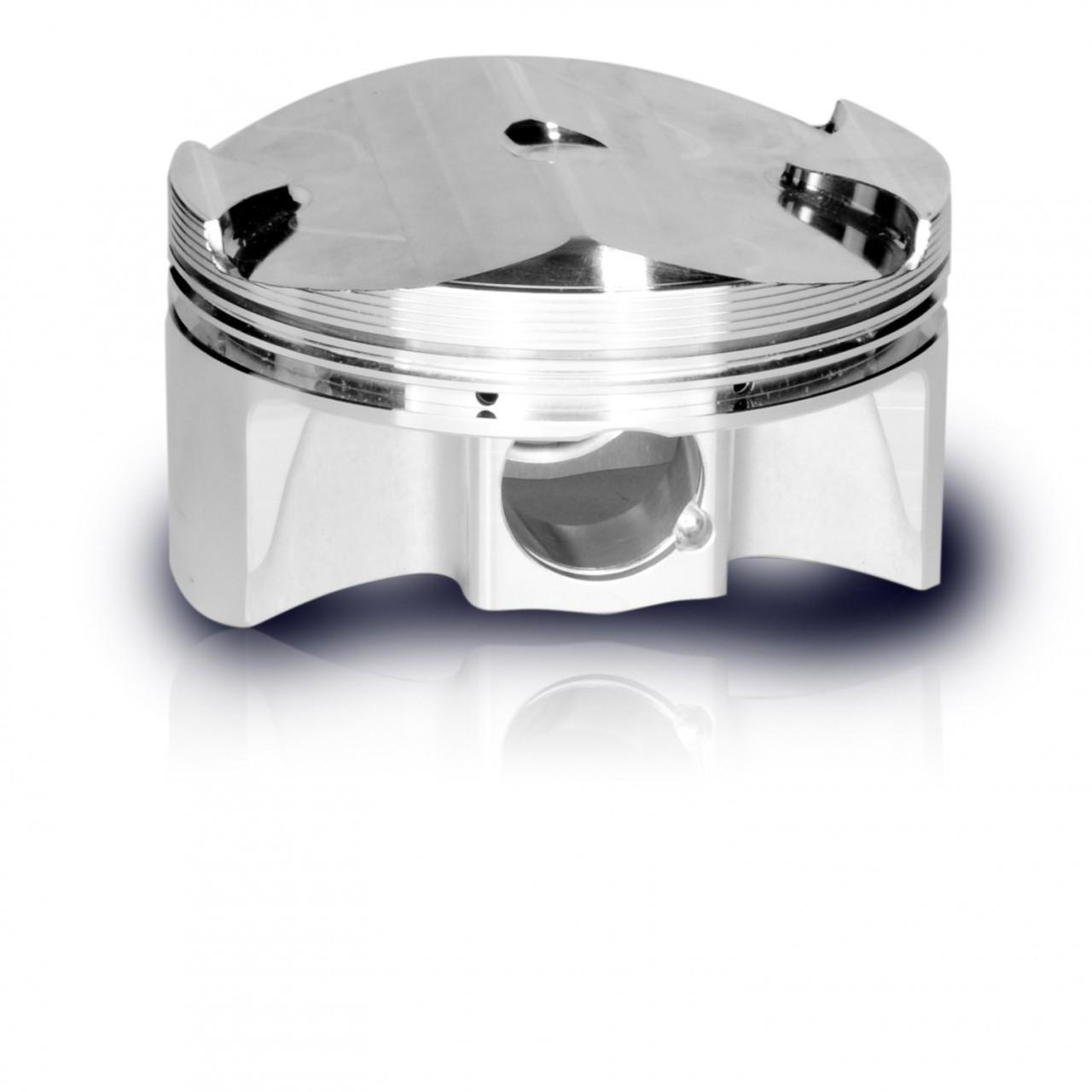

Kawasaki ZX12R 00-05
Std Bore: 83mm
| Piston Kit # |
Disp. | Bore Size |
Over Size |
Comp Ratio |
Ring # | Pin # | Lock # | |||||
 |
||||||||||||
| M3014 | 1198cc | 83mm | STD | 13.5:1 | CPN-2-3268 | W827-2000-12CP1C | 827-063SWL | |||||
|
||||||||||||
| M3015 | 1257cc | 85mm | +2mm | 12.5:1 | CPN-2-3347 | W827-2000-12CP1C | 827-063SWL | |||||
|
||||||||||||
