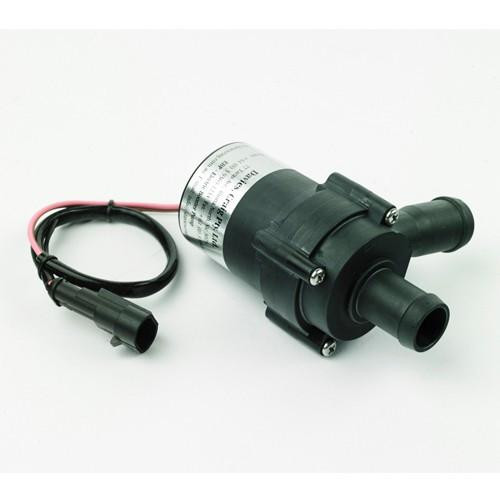

Product Description
The SCH4010 delivers up to 23 liters per minute, making it a perfect choice for:
-
Intercooler heat exchanger systems
-
Cooling hot spots or turbochargers
-
Replacing the stock mechanical water pump on motorcycles (up to 1000cc)
-
Motorcycle-powered race cars (up to 600cc)
-
General water circulation in RVs, fountains, or irrigation setups
Compact & Lightweight
-
Size: 4.5" long × 2.75" diameter
-
Weight: less than 1 lb
-
Brushless motor rated for 15,000+ hours at 175°F (80°C)
Durable Construction
-
Reinforced nylon pump body
-
3/4" (19mm) OD inlet and outlet fittings
Performance Specs
-
Max flow: 23 LPM @ 0 psi
-
Max pressure: 3.5 psi @ 0 LPM
-
Typical flow:
-
20 LPM @ 1.4 psi
-
15 LPM @ 2 psi
-
7 LPM @ 2.9 psi
-
-
Voltage: 9–15 VDC
-
Current draw: 1.3 amps @ 12V
What’s Included
-
Mounting bracket
-
Hose clamps
-
Two 5" sections of 3/4" ID hose
-
Two adapters (3/4" → 5/8" → 1/2")
