Schnitz ECU Reflash Kawasaki ZX-10RR (17-18)

Product Description

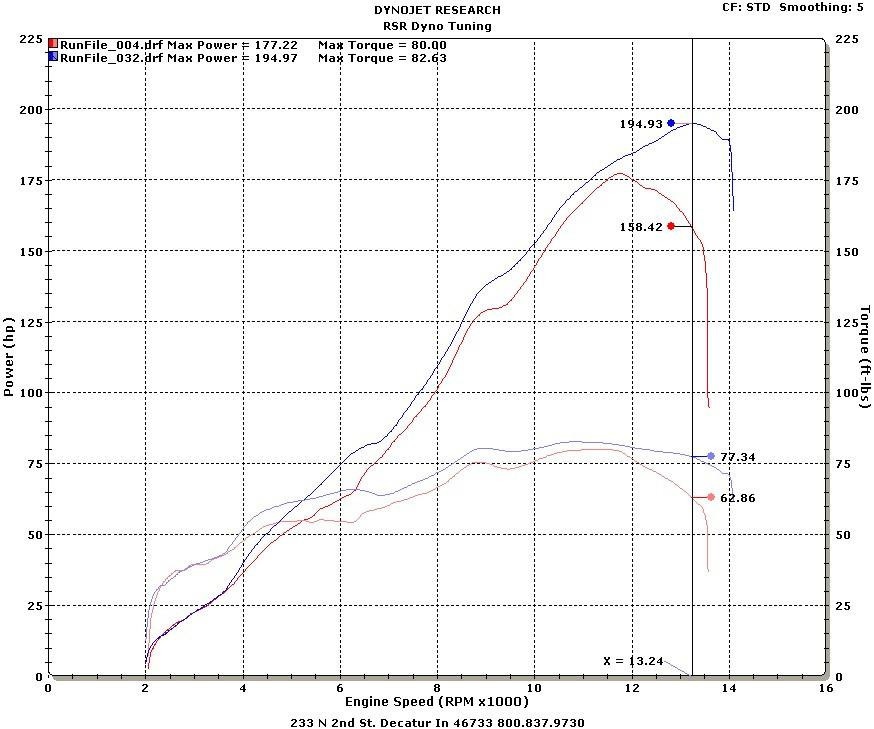

The ZX10RR is a drive by wire system. This means the ECU controls the throttle blade angle. Those cables going to the throttle... they're just connected to a spring and a sensor.  This tells the ECU what you're asking for.  If you're asking for 40% throttle, the ECU says ok, here... have 20% sucka! Well, who wants that?!?  When I ask for 40%, give me 40%, right?  It's not quite that simple. Having the throttle blade angle too aggressive at low RPM will cause a stumble and hesitation that isn't desirable. So we spent hours on the dyno and on the street testing and refining these throttle openings in the mid and low RPM range to ensure the best performance with massive gains between 3,000 and 6,000 RPM. We're talking 20 hp! Now that's what I call SPICEY!

Ignition timing is another question many of our customers ask about.  What do you do with the timing tables.  In short, nothing on the ZX10RR. We played with timing up and down and the bottom line is that anytime we made a change with 92 octane pump gas, we lost power. On many motorcycle, adding a few degrees if ignition timing would give you some gains in torque and horsepower. The ZX10RR is not the same.  Stock is best on timing.

Exhaust Valve Servo Motor (EVSM) - The little black box under the seat with two cables attached to it. This servo motor controls a blade in the stock exhaust system to help create back pressure and reduce noise.  We disable this and allow you to disconnected it from the bike without getting any FI lights on the dash.

O2 Sensor - The factory Oxygen Sensor is a sensor located in the exhaust system that is used to en-lean the fuel mixture below 6,500 RPM to meet pollution regulations and increase fuel economy. This is a narrow band sensor (only reads air/fuel ratios from 14.2 - 15.5). Disabling this allows the engine to run in a slightly richer condition, adding horsepower and throttle response. You can keep the sensor installed in the exhaust system if you don't have a plug to install.

Radiator Fan Temperature. Kawasaki sets the radiator fan to come on at 95'C (203'F) That's a bit too hot for our liking. We set it to come on at 90'C (194'F) and shut off when the engine cools to 85'C (185'F).

Rev limiter - We raise the 13,700 RPM rev limit to 14,200 RPM. We found that after our revised throttle blade tables, the engine was still gaining power at the 13,500RPM.  By raising the limiter, you can rev the engine higher and stay at peak power longer.

For those with a slip on exhaust system, we offer a reflash that has the fuel tables optimized to allow the engine to make best power while being smooth when cruising. This avoids the need for an aftermarket fuel controller.

Standard Reflash:

• Increased Rev Limiter to 14,200 RPM (+500rpm from stock)
• Top Speed Restriction Removed
• Throttle Blades Open More Aggressively And Stay Open at Full Throttle
• Radiator Fan Set to come on at 90*C (194*F)
• Stock O2 Sensor Disabled
• Exhaust Valve Servo Motor (EVSM) Disabled
• Free access to new basic features as they become available. You just pay shipping.

Slip On Exhaust Reflash:

• Adjusted Fuel Tables to Match a Slip On Exhaust System
• Increased Rev Limiter to 14,200 RPM (+500rpm from stock)
• Top Speed Restriction Removed
• Throttle Blades Open More Aggressively And Stay Open at Full Throttle
• Radiator Fan Set to come on at 90*C (194*F)
• Stock O2 Sensor Disabled
• Exhaust Valve Servo Motor (EVSM) Disabled
• Free access to new basic features as they become available. You just pay shipping.
