Product Description

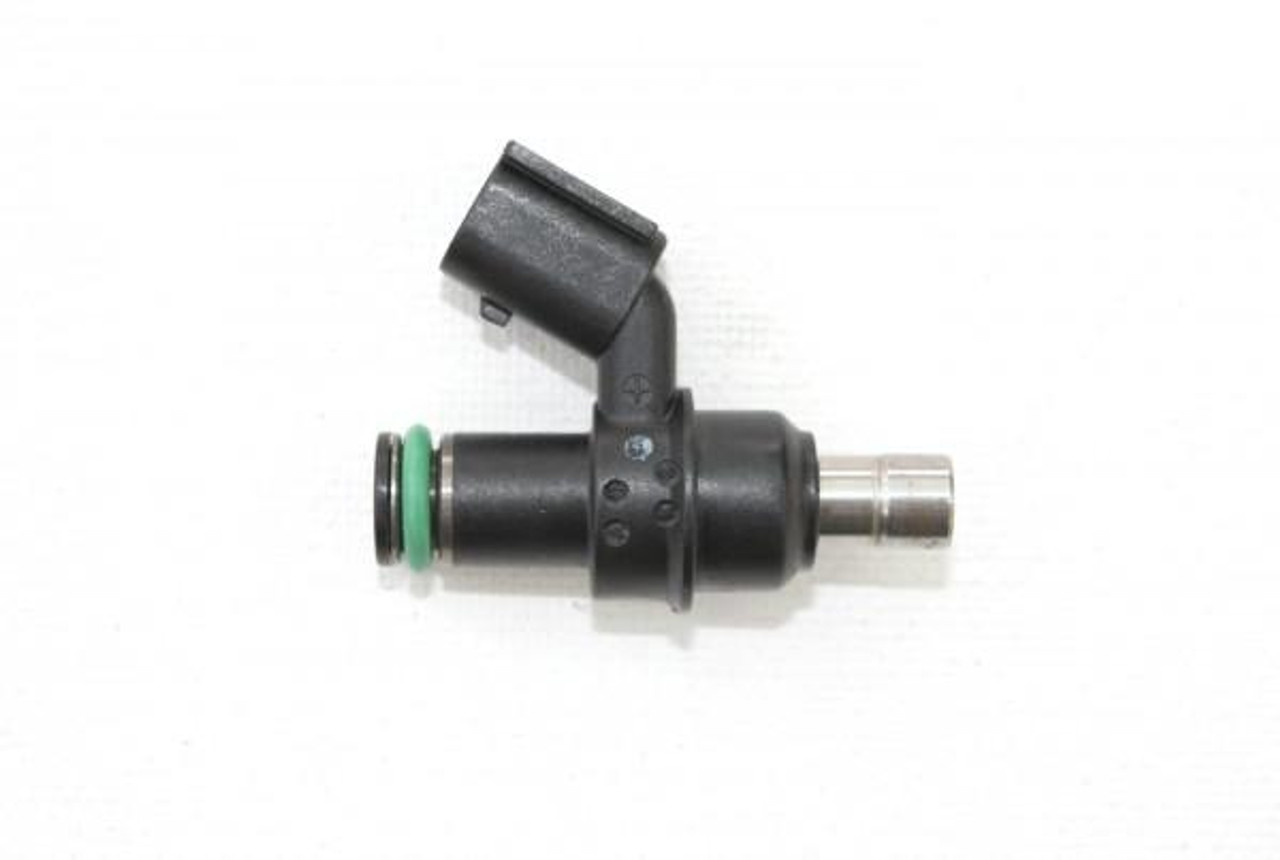

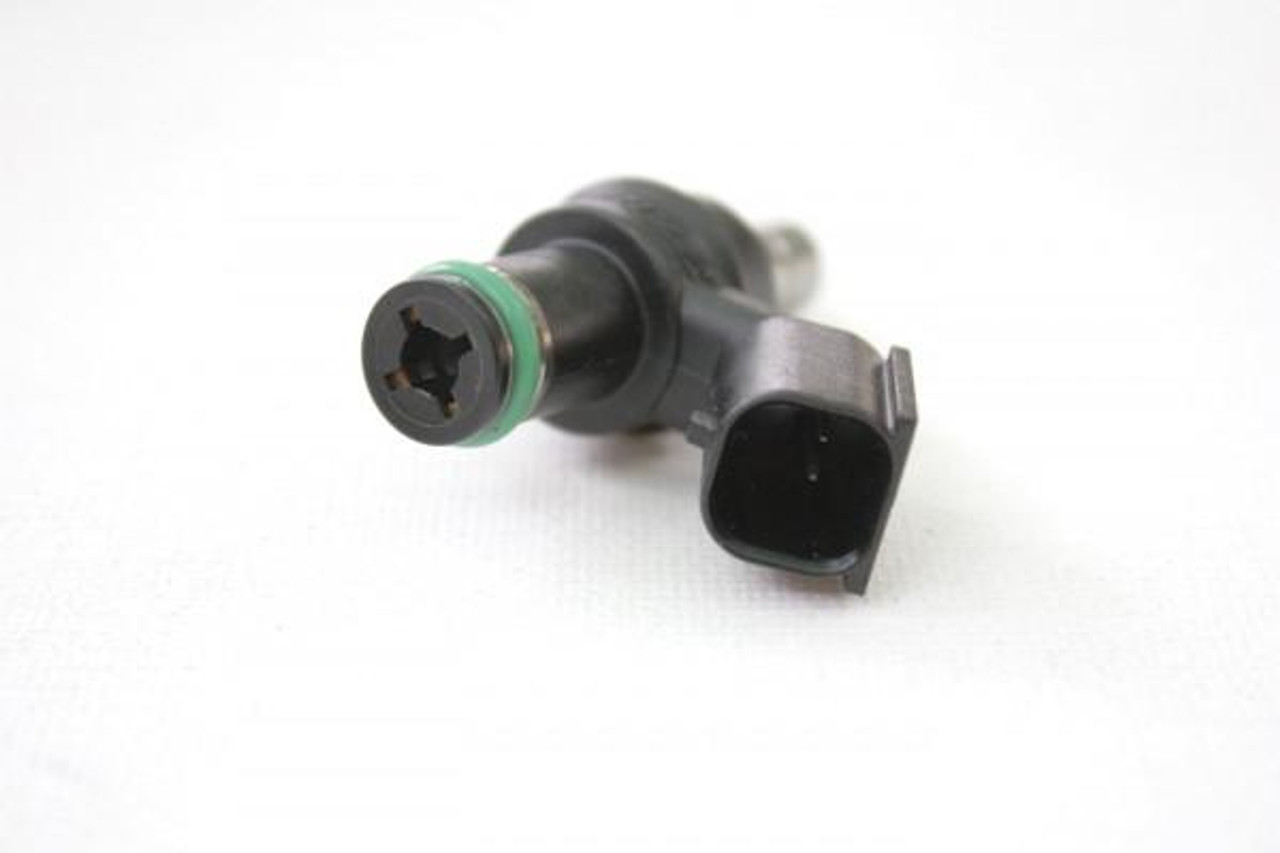

Schnitz Racing now has new 625cc high flow fuel injectors for the Kawasaki ZX-10R (08-10). These are a direct drop in with zero modifications to the fuel rail or injector connectors. These can be used with a billet fuel rail, but only those designed for stock injectors. Perfect for upgrading the primary, secondary or both for high horsepower application like nitrous or turbo chargers.
Sold Individually
FLOW CHART: Each complete set of 4 purchased is sold with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time, off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Body Design: Composite plastic, black
Injector type: Top feed, saturated
3.0 BAR Flow Rate: 625 cc/min
Sample dead time (latency): 0.325 ms at 14 volts
Length, overall: 44.3 mm
Diameter: 14 mm
Fuel rail o-ring: Viton, 11.5 mm
Resistance: 12.5 Ohms
Electrical connector type: EV1
