Product Description

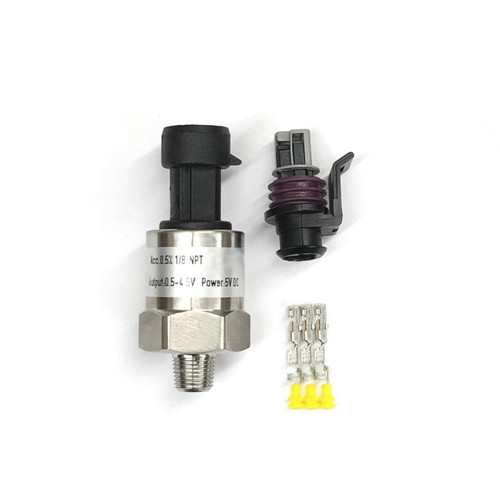

RSR pressure sensors are now available! These high quality stainless steel sensors are accurate to within 0.5% and are compatible with any standalone ECU or data acquisition system that accepts 0-5v signals.
Features:
- Durable Stainless Steel Constructions
- 1/8" NPT Nipple for Easy Installation
- Accurate to within 0.5%
- Includes sealed GT150 Packard Connector Kit
- Compatible with Any Standalone ECU or Data Acquisition system that accepts 0-5v signals.
Typical Uses:
- Manifold Pressure
- Boost Pressure
Specs:
- Weight: 3.3 oz.
- Length: 2.550"
- Width: 0.970"
Technical
- 0.5v - 4.5v Operating Range
- 5V Supply Voltage
- Voltage Output is Independent of Supply Voltage
Linear Calibration:
- 0.5v = -1bar (0kpa) -14.5 psi
- 4.5v = +3bar (400kpa) 43.5 psi
Wiring:
- Pin 1: Ground
- Pin 2: 5v Supply
- Pin 3: Signal
*Remote mounting is recommended to reduce sensor vibration.
