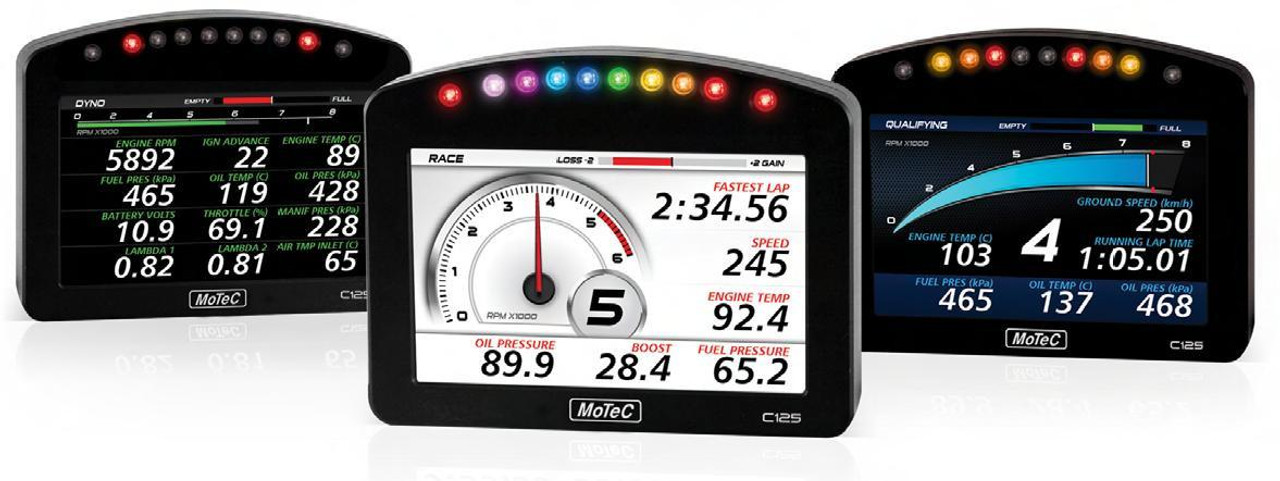

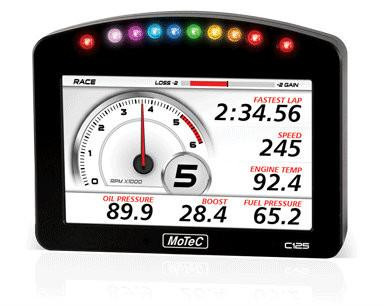

Product Description
The C125 is an exciting addition to MoTeC's new range of colour Displays and Display Loggers. Striking in design and powerful in functionality, the C125 Display can be upgraded to a logger at any time using a simple password system.
The vivid 125mm screen (approx 5") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Numerous selectable layouts are provided with superb graphics that cater for day and night viewing. Within these layouts users can configure the channels and labels to suit their application.
An array of ten full colour LEDs is integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.
WHY DIGITAL?
When you are out on track, monitoring the performance of your vehicle can be vital in maintaining durability and improving your speed. But traditional, fixed-scale gauges are limiting, and trying to keep an eye on a large cluster of instruments while racing is almost impossible.
Customization
There are many advantages of using a single digital display, not least of which is the ability to customise screen layouts. MoTeC displays are designed for flexibility, allowing drivers to configure multiple 'pages' with the information they most want to see at any given time, for example during practice, qualifying and race. This might include RPM, lap time details, gear, fuel and engine vitals. During qualifying, drivers will usually want a running lap time comparison showing gain/loss against a reference lap, and during a race they might want to see the lap number and fuel remaining.
User-defined preferences
Unit preferences are selectable—Fahrenheit or Celsius, psi or kPa, kilometers or miles—and unlike analogue gauges, scales can be defined and redefined. This allows users to hone in on particular RPM ranges, pressures or temperatures as desired. And if another sensor is added, instead of requiring a separate gauge, it is simply configured as a new selectable channel.
Warnings
Each numerical item is programmable and can be overridden by user-defined conditions or warning messages. Warnings are one of the key benefits of a digital display, and many a racer will attest that for this reason alone MoTeC displays are well worth the investment. Warnings can be programmed for dangers such as low oil pressure, high engine temperature or wheel lock up, alerting drivers to take action that could prevent costly damage.
BASIC SPECIFICATIONS
Display
NEW: For full customization of the display layout and graphics add the new Display Creator option.
- Screen: Color TFT LCD, anti-reflective
- Resolution: 800 x 480, anti-aliased graphics
- Selectable fixed layouts with channel and label configurability
- 48 user-defined, scrollable message lines with programmable overrides
- 3 programmable 'pages', for example Practice, Warm-Up, Race
Communications
- 2 x Configurable CAN buses with individually programmable CAN bus speeds
- One can be used as RS232 Receive
- RS232: 2 x RS232 ports
- One with Transmit and Receive
- One with Receive only
Physical
- Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
- Weight 615 g
- 1 x 34 pin waterproof connector
Logging (optional - requires Logging Upgrade)
- 120 MB logging memory
- Logging rates up to 500 samples per second
- Fast Ethernet download
- Includes i2 Standard data analysis software (i2 Pro available as an upgrade)
Inputs (optional - requires I/O Upgrade)
- 6 x analogue voltage inputs
- 2 x analogue temperature inputs
- 2 x digital inputs
- 3 x speed inputs
Outputs (optional - requires I/O Upgrade)
- 4 x low side outputs
- PWM or switched operation
Internal Sensors
- 3-axis G sensor
- Dash temperature sensor
- Sensor supply voltage
- Battery voltage
Expanders
- Compatible with MoTeC E888 and E816 Expanders, providing full functionality.
