Fueltech FT600 EFI System

Product Description

The FT600 ECU is our most advanced engine control and monitoring system. This top of the line ECU is capable of managing sequential injection and ignition on engines from 1 to 12 cylinders, or up to 4 rotors, and accommodates up to 20 inputs and 32 outputs. The FT600 offers the features and capabilities offered by the FT450 and FT550 models and more! Housed in an extremely durable aluminum case, the upgraded design also includes an upper visor to reduce glare and houses 10 LED lights with adjustable color and intensity, ideal for a progressive shift light. The 4 virtual LED lights on the FT450 and FT550 have been replaced with 4 adjustable LED lights, 2 on each side of the screen, that can be configured for alerts or to show the current status of any sensor. The 4.3” color touchscreen has been upgraded with an anti-glare display, integrated digital dashboard, 4 programmable display screens, and a customizable splash screen. The FT600 features dual 34 pin SuperSeal connectors, 2 CAN Bus ports, and USB-A mini. Equipped with FTManager software and an impressive list of features, including sequential injection and ignition, O2 closed loop, active traction control, integrated boost controller, internal datalogger, progressive and PRO-Nitrous controls, odometers, drag racing features, electronic throttle control, inclinometer gauge, integrated Gear Controller with strain gauge sensor on the shifter for more efficient gear shift cuts, built-in accelerometer (G-meter), gyroscope, and more! IP67 rated for marine and off-road applications.

 FT600 Manual
 FTManager Software

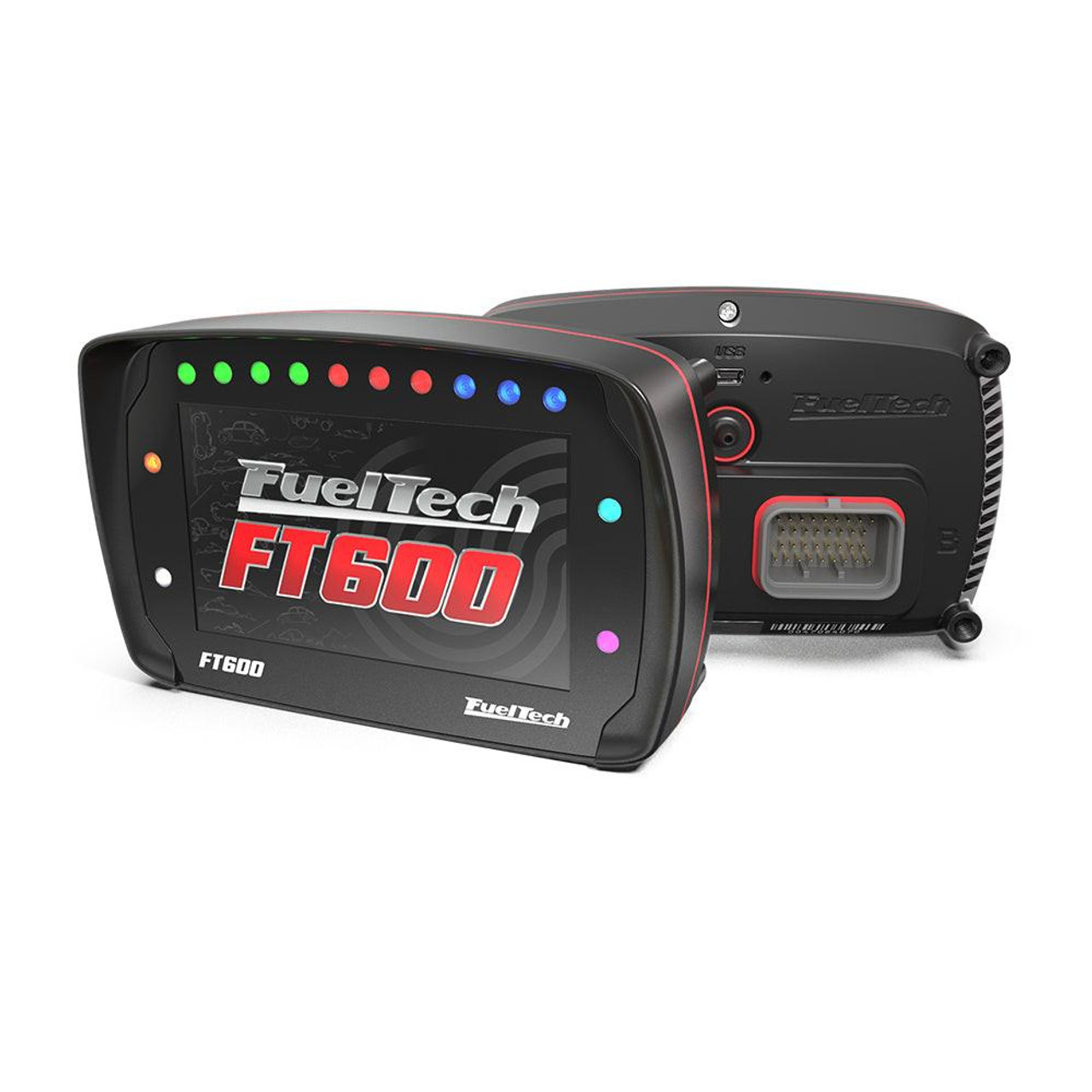

The FT600 has a new and exclusive extremely high quality aluminum housing, which is also waterproof to IP67 standards. Its design includes an upper visor that reduces glare and houses 10 LED lights that are color and intensity adjustable, suitable for a progressive shift light. There are also 4 more LED lights on the side of the ECU that are adjustable for diagnosing, alerts and current status of any sensor. The FT600 has an anti-glare TFT touchscreen display and embodies a redesigned dashboard exclusively developed to grant the driver an easier viewing experience. The touch screen display makes it possible to make map adjustments directly on the ECU, without the need to use a laptop.

The FT600 is able to manage sequential injection and ignition on engines from 1 up to 12 cylinders (or up to 4 rotors). It comes with an option for simplified maps which allow making initial adjustments easier or 3D maps for more advanced applications. This new ECU presents individual cylinder injection and ignition trim and exclusive features that help on the first engine start. It also contains an advanced and efficient closed loop fuel control for engine safety.

Developed on the PowerFT platform, already praised for the FT500, the FT600 presents new features such as the new SUPERSEAL automotive connectors that add up to 68 pins (20 sensor inputs and 32 outputs), accelerometer and gyroscope, 2 CAN networks, and a built-in GearController. The last feature enables the direct connection with the strain gauge sensor on the shifter, bringing new possibilities for more efficient engine gearshift cuts.

The FT600 also presents a pack of beloved racing functions used all over the world, such as time based launch features, Boost control, Staging control, Pro-Nitrous control, advanced internal datalogger, just to name a few!

The FT600 uses the same FTManager software, with all resources and existing functions. It is also compatible with all existing features and FT500 maps. You can open, edit and save maps through an interactive interface that is easy to use.
