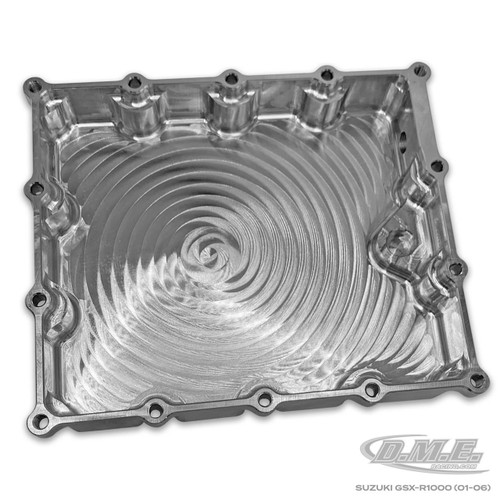

DME Low Profile Billet Oil Pan Suzuki GSXR1000 (01-08)

Product Description

The DME Racing Billet Oil Pan for the GSX-R1000 is 1.5″ thick for added ground clearance so you can slam your 1000. This pan is designed for sidewinder exhaust applications but can be used with some street-style exhaust systems that go under the pan. Our billet oil pans have a swinging pick-up to prevent loss of oil pressure when drag racing.

FITMENT
This pan is designed for sidewinder exhaust applications but can be used with some street-style exhaust systems that go under the pan. You will need to measure the clearance to determine if you have enough room for fitment. We can not guarantee fitment for any ‘non-sidewinder’ style exhaust systems.

• Suzuki GSX-R1000 (2001-2006)
• Suzuki GSX-R1000 (2007-2008)
• Depth – 1.5″
• Max Width – 7.6″
• Max Length – 8.9″

FEATURES

• Billet Aluminum
• Designed for sidewinder exhaust applications
• Swinging pickup with needle bearing
• Uses the stock drain plug (M14 x 1.25)
• DME Racing oil pans hold about 4.5 quarts of oil, this will fill past your sight glass.
• Made in the U.S.A.
