Product Description
Part# 111006

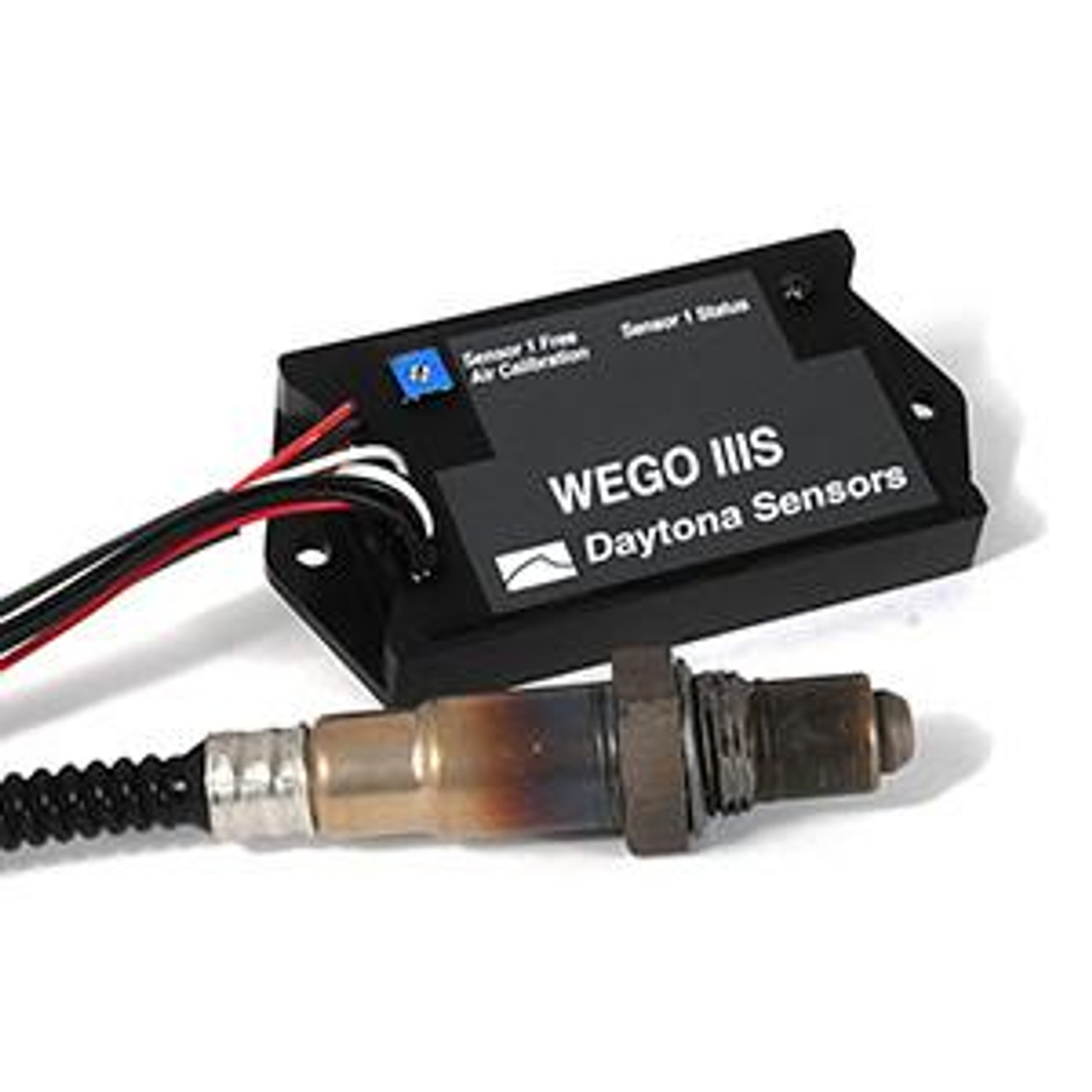

Single channel interface unit with 0-5V analog AFR output for automotive applications, includes Bosch LSU 4.2 oxygen sensor, and 18 x 1.5 mm weld nut
Features:
- Includes includes WEGO IIIS interface plus one (1) wideband sensor and one (1) 18x1.5mm sensor weld bung
- 0-5V analog air/fuel ratio (AFR) outputs for interface to data acquisition systems and dyno instrumentation
- Can be used for on-road or dyno testing
- Suitable for automotive, motorcycle, and other small engine applications
- Highly accurate with less than ±0.10 AFR error over 10.3-19.5 AFR range
- Easy free-air calibration for sensor aging effects
- Wide supply voltage range from 11-16V allows operation from battery on small
- engines or race vehicles with an alternator
- Current draw is approximately 2 amp
- Fully encapsulated and water-proof
- Compact size: 4” long x 2” wide x 0.5” height
