Product Description

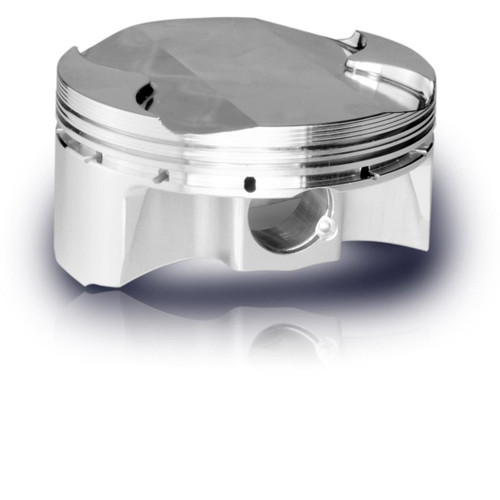

Yamaha YZF-R6 (01-05)
Std Bore: 65.5mm
| Piston Kit # | Disp. | Bore Size | Over Size | Comp Ratio | Ring # | Pin # | Lock # |
| M1072 | 600cc | 65.5mm | STD | 13.2:1 | MAC06550 | 630-1500-13CP1C | 630X050 SWL |
| M1073 | 627cc | 67mm | +1.5 | 13.75:1 | XA 2638 | 630-1500-11CP1C | 630X050 SWL |
Yamaha YZF-R6 (06-23)
Std Bore: 67mm
| Piston Kit # | Disp. | Bore Size | Over Size | Comp Ratio | Ring # | Pin # | Lock # |
| M1075 | 600cc | 67mm | STD | 13.1:1 | MAC06700 | 591-1500-13CP1C | 591x050 SWL |
| M1077-050 | 635cc | 69mm | +2mm | 13.5:1 | MAC06900 | 591-1500-11CP1C | 591x050 SWL |
Need To Order Just A Single Piston? Call us at (260) 728-9457 or email sales@schnitzracing.com
