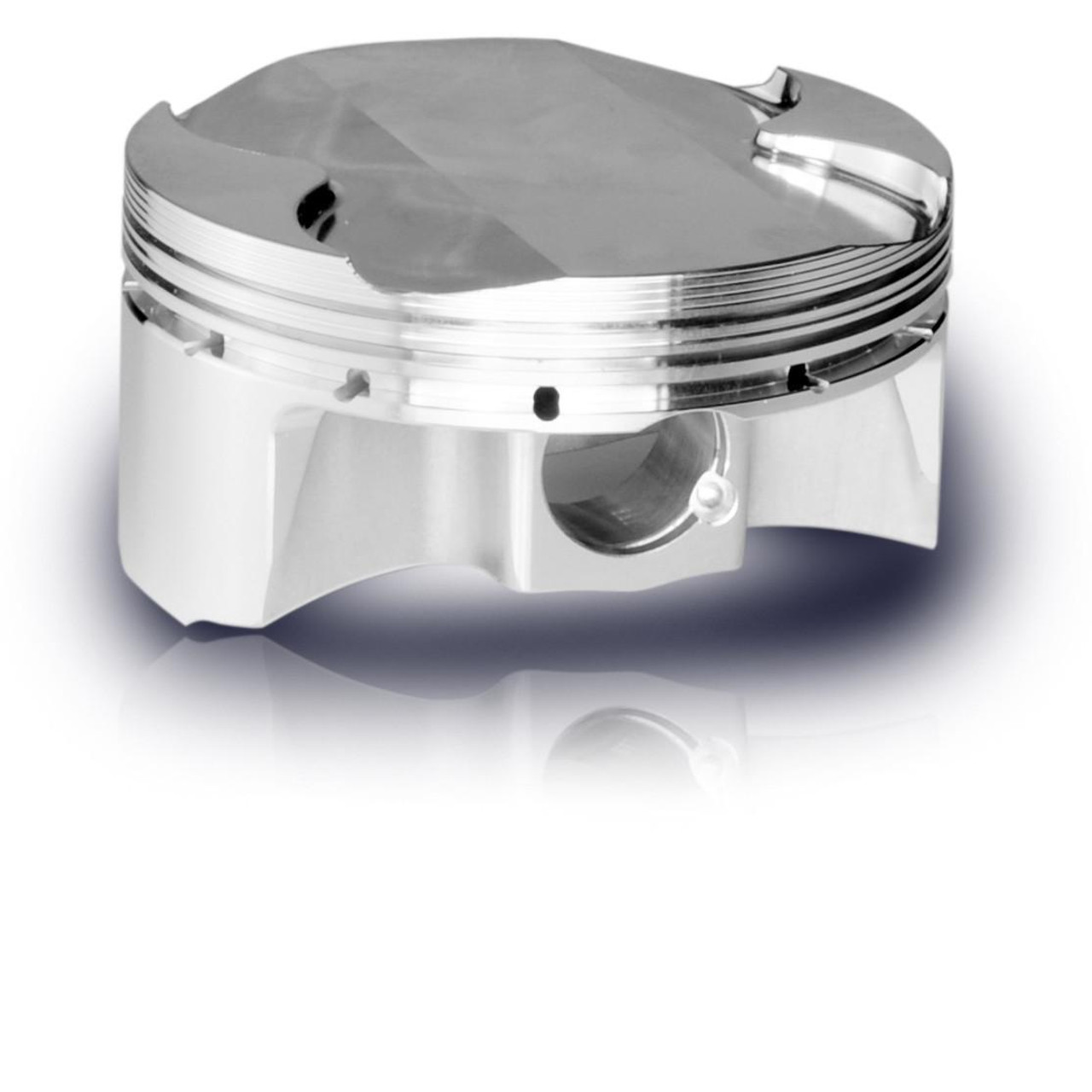

Product Description

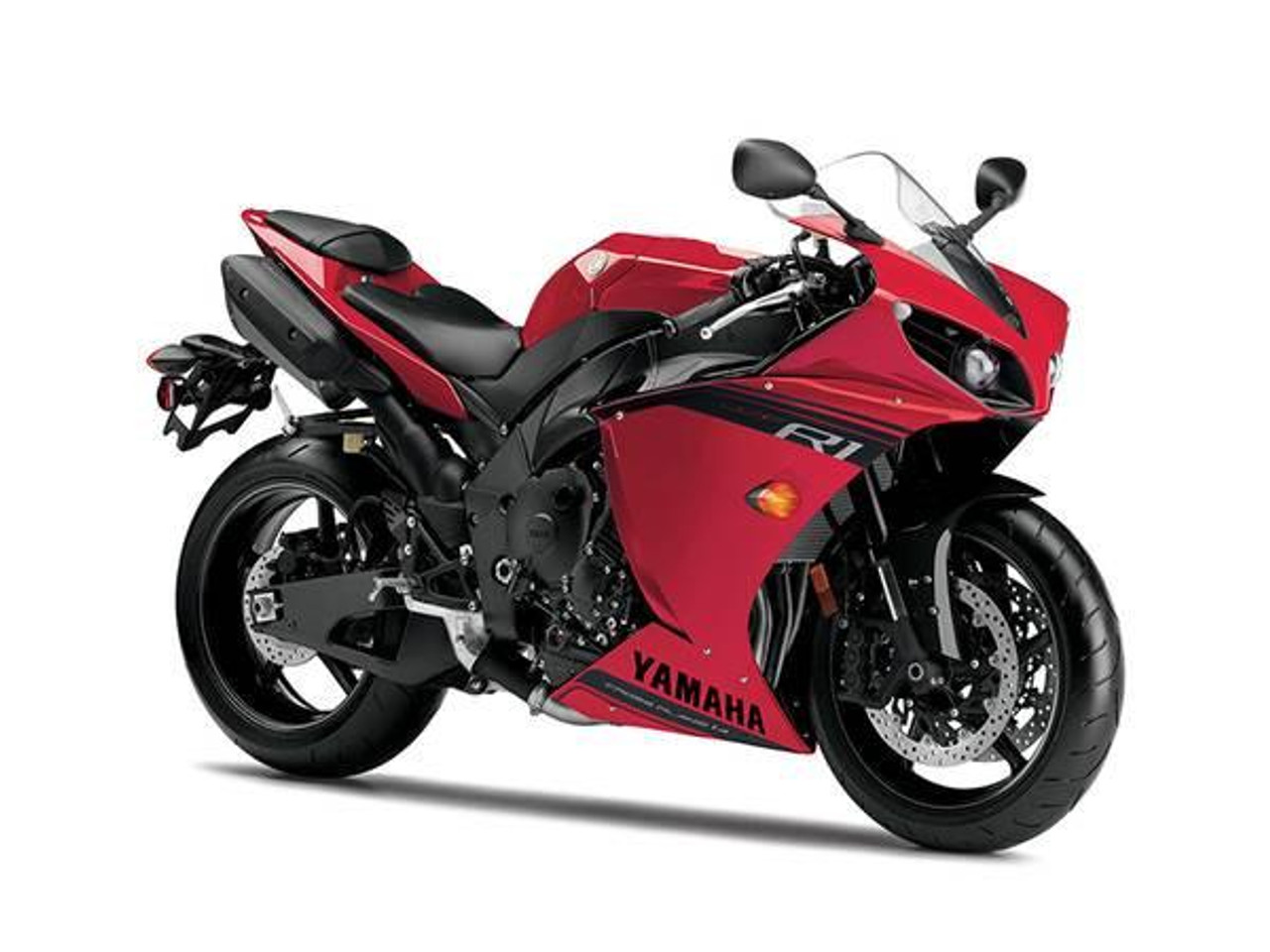

Yamaha YZF-R1 (04-06)
Std Bore: 77mm
| Piston Kit # | Disp. | Bore Size | Over Size | Comp Ratio | Ring # | Pin # | Lock # |
| MX1023C | 998cc | 77mm | STD | 13:1 | CPXG-7700C | W669-1650-12CP1C | 669X050 SWL |
| MX1024C | 1050cc | 79mm | +2mm | 13:1 | CPXG-7900C | W669-1650-12CP1C | 669X050 SWL |
Yamaha YZF-R1 (07-08)
Std Bore: 77mm
| Piston Kit # | Disp. | Bore Size | Over Size | Comp Ratio | Ring # | Pin # | Lock # |
| M1055C | 998cc | 77mm | STD | 13:1 | CPXG7700C (CP7700C top and oil, XG3031 sec) | 669-1650-12CP1C | 669X050 SWL |
| M1056C | 998cc | 79mm | +2mm | 13:1 | CPXG7900C (CP7900C top and oil, XG3110 sec) | 669-1650-12CP1C | 669X050 SWL |
Yamaha YZF-R1 (09-14)
Std Bore: 78mm
| Piston Kit # | Disp. | Bore Size | Over Size | Comp Ratio | Ring # | Pin # | Lock # |
| M1079C | 998cc | 78mm | STD | 13.5:1 | XG-3071 | W669-1650-12CP1C | 669x050 SWL |
| M1080C | 1050cc | 80mm | +2mm | 13:1 | CPXG8000C (CP8000C Top and Oil, XG 3149 sec) | W669-1650-12CP1C | 669x050 SWL |
Need To Order Just A Single Piston? Call us at (260) 728-9457 or email sales@schnitzracing.com
