The Schnitz Racing 685cc Piston Kit for the '96-'16 Kawasaki KLR650 is guaranteed to reduce vibration, eliminate oil burning and increase horsepower throughout the entire RPM range of the engine. This kit really wakes up the KLR650 and gives the bike an entire new feel. These pistons have been designed by Schnitz Racing to our specifications and are the original! Don't be confused by other copycats out there. Over 1,200 kits sold!
- 102.5mm - 685cc

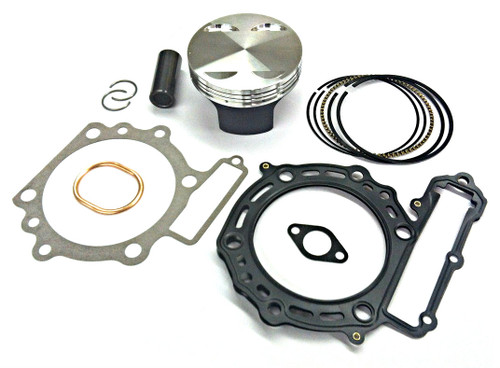

- Kit supplied with rings, pin, circlips, base gasket, head gasket, cam chain tensioner gasket and exhaust gasket
- Moly Coated Skirt
- Dual Pin Oilers
- DLC Coated Piston Pin
- 83 grams lighter than stock
- 9.7 to 1 Compression
- Valve relief to clear 40/36mm Valves
- Std. Tension Oil Ring
Top Ring Ductile Iron Plasma Moly Barrel Face Back Cut Torsional
2nd Ring Iron Phospate Taper Face Back Cut Reverse Torsional
Oil Ring Carbon Steel Chrome Full Seal Flexvent
*Now using the factory OEM base gasket in our complete kit.
Videos Hide Videos Show Videos
20 Reviews Hide Reviews Show Reviews
Did this upgrade about 2 1/2 years ago or about 23,000km. I have to say it completely fix the oil burning issue, now not a drop. Always nice to use a forged.
I have installed a couple of these over the years and it still remains the best big-bore kit for your KLR. It includes everything you need, from gaskets to a comprehensive instruction set.
The first kit I installed was on my own bike, years ago. I have now done more than 90 000km since then and the bike still doesn't use oil.
Thanx for doing the KLR community a great service.
The only question you will ask yourself is, why didn't I do this sooner. The toughest part of this rebuild was finding a machine shop to do bore and hone, because it is a large bore job. It's just over 4" and the shops around here didn't have a bore bar that large. You are going to be amazed at the extra power... Not a tub, but enough to ease up the front tire in 2nd gear... Mine never did that before. Another and quiet. Might as well get the thermo-Bob while you have it torn down. GET THIS KIT!!! You won't regret it!
I ride this kit for 6 years, still delivery strong power, no oil consume.
Hard trail, including Moab.
I found the pictorial guides indispensable. I did struggle with carb removal in tearing the engine down, and avoided the battle on re-assembly by simply removing the rubber boot from the intake manifold, attaching it directly to the carb, and then re-attaching it to the engine.
Very high quality kit! Went together easy with one exception, wrist pin clips were a pain. Please include tips on installation... Runs great!!
